Before printing anything, you'll first need to check your print settings in Adobe Acrobat to make sure that "Auto-Rotate and Center" is unchecked and "Page Scaling" is set to "None." The easiest way to do this is to click "Print" in Maestro Label Designer, and then select "Print / Preview," which should open your design in Adobe Acrobat. Now you can "Print" your test page and configure the settings mentioned above:

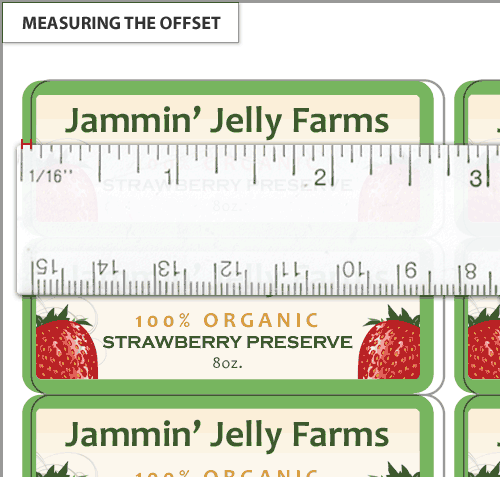

If the print is still off-center, you'll need a ruler or caliper to measure just how off your design is from the actual label, in inches. Take note of these measurements for later.

Click on the "Page Setup" button in the top toolbar of Maestro Label Designer:

Do some quick math and either add (to move right/down) or subtract (to move left/up) from the already set margins in Maestro Label Designer.

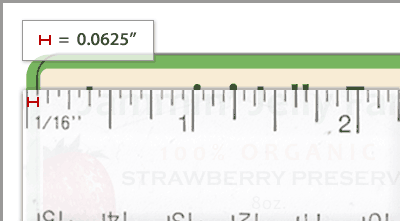

As an example, let's say your design is 0.0625" to the left of the actual label:

Take that 0.0625" off-set and add it to the Left Margin of our template in the Page Setup. In this case, OL100 has a left margin of 0.1525" and we need to add 0.0625" to that, giving us a total Left Margin of 0.215". Enter this number into the "Left Margin:" field. Click "OK."

You should now be able to save and print your image correctly with the new margin settings.
